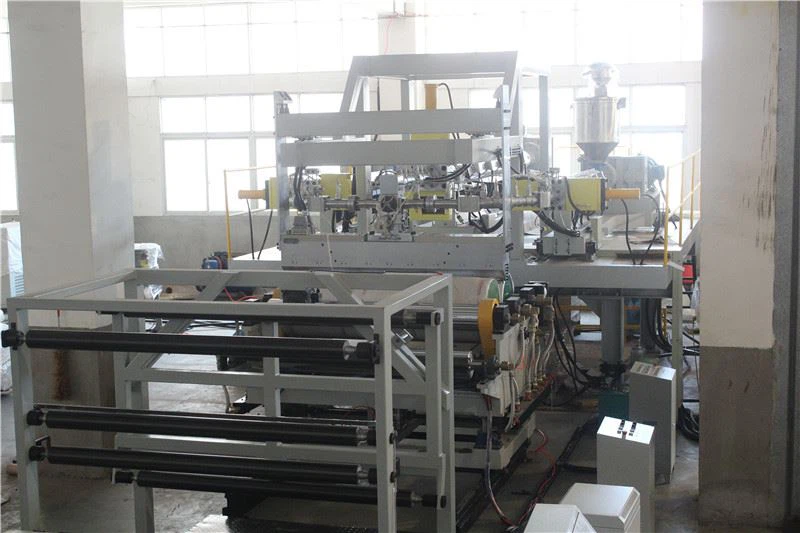

Cast Film Production Line
The manufacturing technology of Cpp cast film production line includes the design of feeding, extruder, melt line (including filtration, metering), die, casting, traction and winding.
Description
Product Description:
Cpp cast film production line equipment composition:
The manufacturing technology of Cpp cast film production line includes the design of feeding, extruder, melt line (including filtration, metering), die, casting, traction and winding.
Cast film has the advantages of high heat seal strength and low production cost, and its strength, gas barrier performance and tearing performance are completely comparable to BOPP film. It can be used to produce packages, labels and special packaging, such as heat-sealing film, synthetic paper labels, food packaging, pharmaceutical packaging, festive decorations, and sequins.
Products Specifications:
Model | Screw Diameter | Screw L/D ratio | T Die Width | Film Width | Film Thickness | Liner Speed |
CCIB-1250 | 90mm | 36:01:00 | 1250mm | 1000mm | 0.02-0.3mm | 30-80m/min |
CCIB-1900 | 110mm | 36:01:00 | 1900mm | 1600mm | 0.02-0.3mm | 30-80m/min |
CCIB-2300 | 120mm | 36:01:00 | 2300mm | 2000mm | 0.02-0.3mm | 30-80m/min |
CCIB-2600 | 135mm | 36:01:00 | 2600mm | 2300mm | 0.02-0.3mm | 30-80m/min |
CPP film is printed and bagged for:
(Composite film) clothing, knitwear and flower bags; documents and photo albums; food packaging.
(Aluminized film) barrier film and decorative metallized film. After vacuum business card holder, ring folder and standing bag composite.
aluminum plating, it can be combined with BOPP, BOPA and other substrates for high-grade packaging of tea, fried crispy food, biscuits, etc.
(Steamed film) CPP is excellent in heat resistance. Since the PP softening point is about 140 ° C, such films can be used in the fields of hot filling, retort pouch, aseptic packaging and the like. Plus acid, alkali and grease resistance, making it the material of choice for bread packaging or laminates. It is safe to contact with food, has excellent demonstration performance, does not affect the flavor of the food, and can choose different grades of resin to obtain the desired characteristics.
(Functional film, also known as special film) Potential uses include: food packaging, candy packaging (twisted film), pharmaceutical packaging (infusion bag), in the field of albums, folders and documents instead of PVC, synthetic paper, not dry Tape,
